Chlorine dioxide systems are an essential component of clinical water treatment as they provide an effective and reliable method of disinfecting water in medical facilities. Chlorine dioxide is a powerful oxidising agent that is effective against a wide range of pathogens such as bacteria, viruses and fungi. These systems are particularly suitable for use in hospitals as they ensure continuous disinfection while remaining free of harmful by-products, which is of great importance in the healthcare sector.
An outstanding advantage of chlorine dioxide systems is their long-lasting effect, which remains stable even in complex and extensive water systems. This is particularly important in large hospitals, where comprehensive water disinfection is necessary to minimise the risk of infection. Chlorine dioxide also prevents the formation of biofilms, which often serve as a breeding ground for microorganisms in pipes. This makes a significant contribution to maintaining water quality and meeting the high standards in the healthcare sector.
The use of chlorine dioxide systems raises water hygiene to a new level that meets the requirements for cleanliness and safety in sensitive clinical areas such as operating theatres and intensive care units. The systems enable precise and safe dosing that is easy to handle and ensures reliable disinfection. Chlorine dioxide is therefore the ideal choice for clinics and hospitals that want to ensure permanent water hygiene.

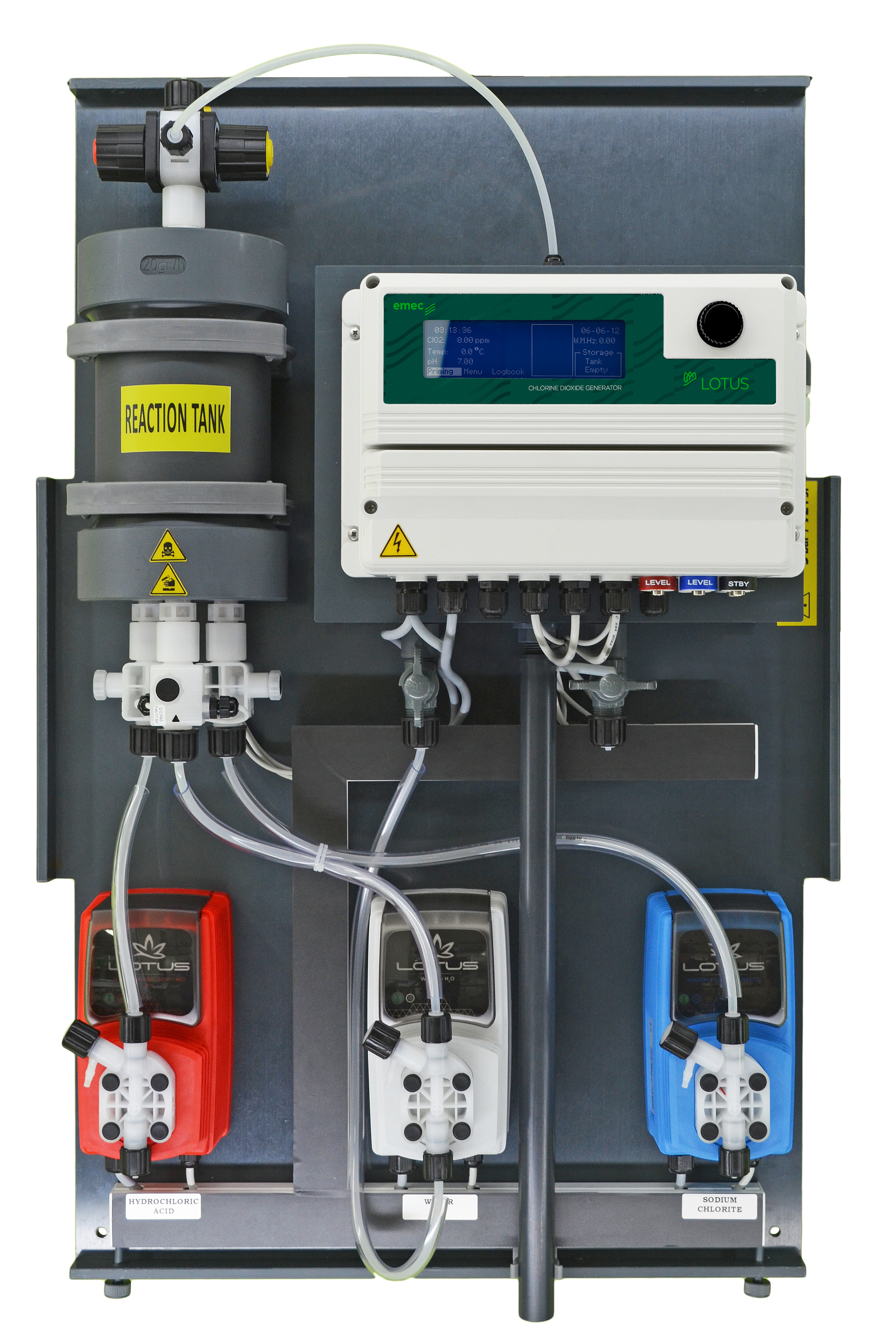

The LOTUS MINI system is a device for the production, dosing and monitoring of chlorine dioxide for the disinfection of water and is available as a system with a capacity of 8 g/h (192 g/day) and as a system for up to 20 g/h (480 g/day). Chlorine dioxide is produced by the acid-chlorite process from diluted hydrochloric acid (HCl 9%) and sodium chlorite (NaClO2 7.5%). Chlorine dioxide production by LOTUS MINI can be controlled according to the flow rate of the water or according to a predefined setpoint. No chlorine dioxide is stored or saved, so neither chlorine dioxide gas nor concentrated solutions are produced outside the process application. LOTUS MINI is designed so that chlorine dioxide is generated in a special reaction chamber. Safety is ensured by multifunction valves at the injection points in the reaction chamber. The starting chemicals are stored in tanks and fed into the reaction chamber via suction lances. Integrated fill level sensors stop the pumps automatically when the tanks are empty. The Lotus Mini system is equipped with the following components: The Lotus control unit Dosing pumps for HCI (red) and NaCIO2 (blue) A pump for dilution water (grey) 3SEFL flow sensors to ensure increased safety An MFKT/V multifunction valve that regulates pressure and safety and acts as an antisiphon and drain valve A reaction chamber Injection valves 2 suction lances Advantages: Reaction under atmospheric pressure High stability of the chlorine dioxide solution No loss of CIO2 due to closed reaction chamber Use of diluted chemicals Functions: Immediate CIO2 production Proportional CIO2 dosing Flow monitoring input (flow alarm) Tank level monitoring (level alarms) Water meter connection Standby input Real-time production data Monitoring of pumps and flow sensors (SEFL) Continuous data storage with system data log (logbook in the menu) ERMES communication mA output Display of the next service date Optional USB data protocol Optional Ethernet module Optional internal GSM/GPRS modem Characteristics: CIO2 concentration: 2g/l Dosing pumps for HCI (red), NaCIO2 (blue) and dilution water (grey) 3 SEFL control sensors for monitoring pump dosing MFKT/V multifunction valve for pressure and safety, as antisiphon and drain valve Reaction chamber made of PVC Housing made of ASA (acrylonitrile-styrene-acrylate copolymer) Protection class IP65 (NEMA4x) for the LOTUS control unit and pumps Rotary control for easy programming Operating temperature: 0/45°C (32/110°F) Frequently Asked Questions What is the LOTUS MINI 20 used for? For the production, dosing, and monitoring of chlorine dioxide for the safe disinfection of water. How is chlorine dioxide generated? Via the acid-chlorite process using dilute hydrochloric acid (HCl) and sodium chlorite (NaClO₂) in a closed reaction chamber. Is the process safe? Yes; chlorine dioxide is not stored, and all reactions take place in a controlled manner at atmospheric pressure. Can dosing be automated? Yes; dosing can be controlled proportionally to water flow or based on a predefined setpoint. What safety features are integrated? Multifunction valves, level sensors, flow sensors, and pump monitoring ensure safe production. What are the system's advantages? Immediate chlorine dioxide production, stable solution, use of dilute chemicals, real-time monitoring, and data logging. What is the output capacity of the LOTUS MINI 20? Up to 20 g/h (480 g/day) of chlorine dioxide; suitable for small to medium water volumes.
The LOTUS MINI system is a device for the production, dosing and monitoring of chlorine dioxide for the disinfection of water and is available as a system with a capacity of 8 g/h (192 g/day) and as a system for up to 20 g/h (480 g/day). Chlorine dioxide is produced by the acid-chlorite process from diluted hydrochloric acid (HCl 9%) and sodium chlorite (NaClO2 7.5%). Chlorine dioxide production by LOTUS MINI can be controlled according to the flow rate of the water or according to a predefined setpoint. No chlorine dioxide is stored or saved, so neither chlorine dioxide gas nor concentrated solutions are produced outside the process application. LOTUS MINI is designed so that chlorine dioxide is generated in a special reaction chamber. Safety is ensured by multifunction valves at the injection points in the reaction chamber. The starting chemicals are stored in tanks and fed into the reaction chamber via suction lances. Integrated fill level sensors stop the pumps automatically when the tanks are empty. The Lotus Mini system is equipped with the following components: The Lotus control unit Dosing pumps for HCI (red) and NaCIO2 (blue) A pump for dilution water (grey) 3SEFL flow sensors to ensure increased safety An MFKT/V multifunction valve that regulates pressure and safety and acts as an antisiphon and drain valve A reaction chamber Injection valves 2 suction lances Advantages: Reaction under atmospheric pressure High stability of the chlorine dioxide solution No loss of CIO2 due to closed reaction chamber Use of diluted chemicals Functions: Immediate CIO2 production Proportional CIO2 dosing Flow monitoring input (flow alarm) Tank level monitoring (level alarms) Water meter connection Standby input Real-time production data Monitoring of pumps and flow sensors (SEFL) Continuous data storage with system data log (logbook in the menu) ERMES communication mA output Display of the next service date Optional USB data protocol Optional Ethernet module Optional internal GSM/GPRS modem Characteristics: CIO2 concentration: 2g/l Dosing pumps for HCI (red), NaCIO2 (blue) and dilution water (grey) 3 SEFL control sensors for monitoring pump dosing #BBD0E0 » Frequently Asked Questions What can I use the LOTUS MINI 8 for? The LOTUS MINI 8 is suitable for the safe disinfection of water in various applications. Is the device also suitable for smaller volumes of water? Yes, the LOTUS MINI 8 was specifically developed for small to medium-sized applications. Do I need to store or stockpile chlorine dioxide? No, the chlorine dioxide is generated on demand and is not stored. Is the device complicated to operate? No, the system is designed for simple and convenient operation. Can dosing be performed automatically? Yes, the dosage can be automatically adjusted based on water demand. How safe is the operation of the LOTUS MINI 8? The device features various safety functions to ensure reliable operation. What are the benefits of on-site chlorine dioxide generation? You get fresh chlorine dioxide at any time and avoid complex storage requirements.

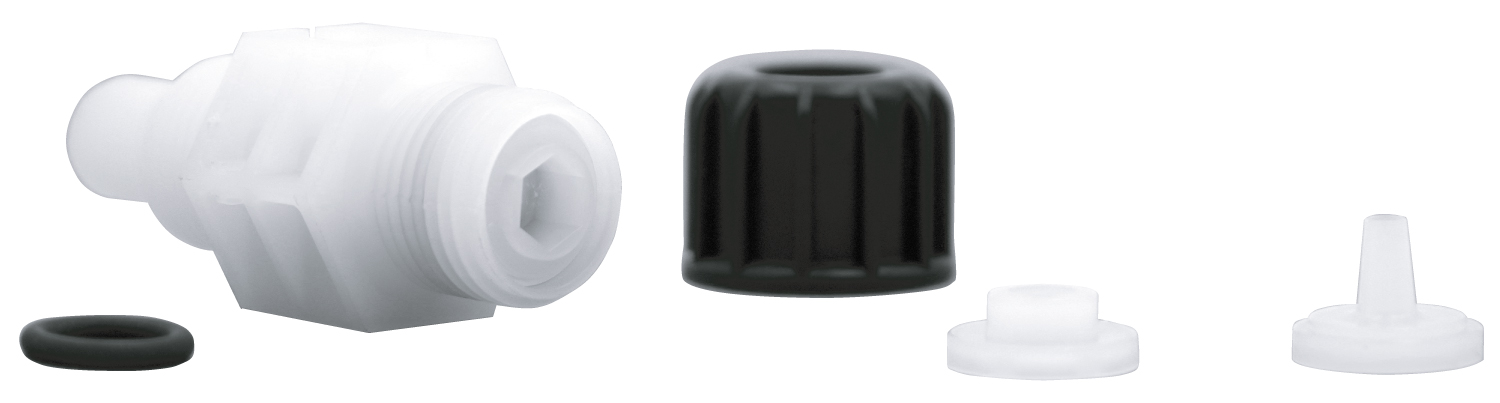

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus. emec LOTUS MINI injection valve 1/2" - 4 x 6 PVDF+FP+CE Frequently Asked Questions Can I use the injection valve with my emec dosing system? Yes, it is designed for all emec dosing systems. Which liquids is the injection valve suitable for? It is suitable for dosing chlorine and pH-Minus. Is the valve easy to install in the pipeline? Yes, it screws directly into the pipeline. Is the material suitable for continuous use? Yes, the valve is made of robust and durable PVDF. Can I also use the injection valve in water treatment systems? Yes, it is suitable for any application where chlorine or pH-Minus is dosed. Does the valve fit a 1/2" connection? Yes, the injection valve is designed for a 1/2" connection. Why should I use an injection valve? It enables the targeted introduction of dosing media into the pipeline.

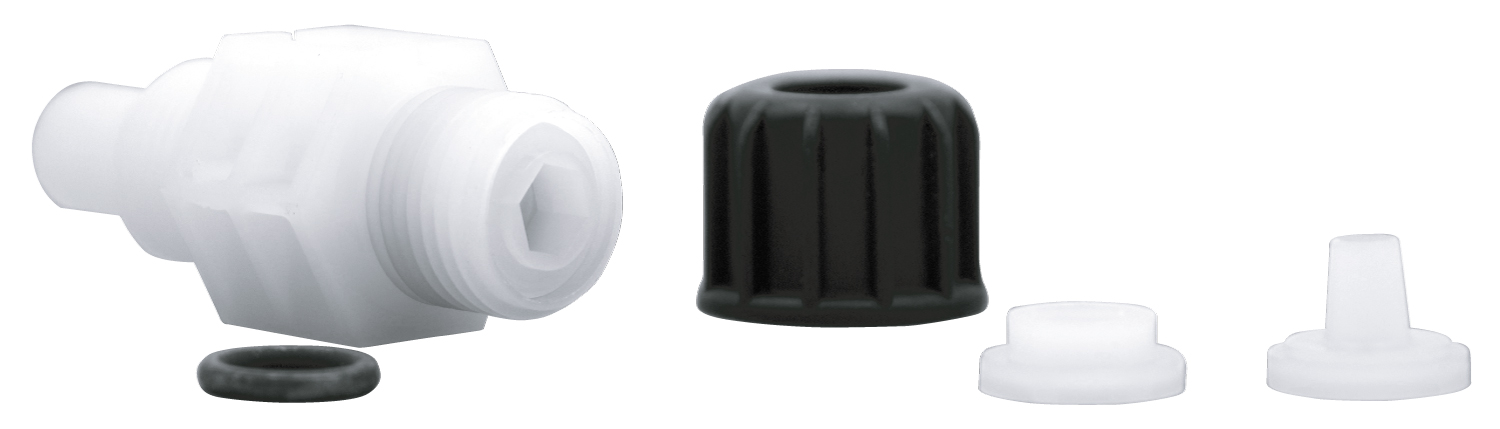

This injection valve made of polyvinylidene fluoride (PP), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus. LOTUS MINI injection valve 1/2"- 4x6 (PP+EP+CE) Opening pressure: 0.3 bar Frequently Asked Questions Is the injection valve compatible with my emec dosing system? Yes, it is designed for all emec dosing systems. Can I use it to dose chlorine or pH-Minus? Yes, the injection valve is suitable for both dosing media. Is installation quick and easy? Yes, the valve screws directly into the pipeline. What applications is the injection valve suitable for? It is suitable for any application involving the dosing of chlorine or pH-Minus. Is the material suitable for daily use? Yes, the polypropylene housing is robust and durable. Does the valve fit a 1/2" connection? Yes, it is designed for a 1/2" connection. Why is the 0.3 bar opening pressure useful? The valve opens at a low pressure of just 0.3 bar.

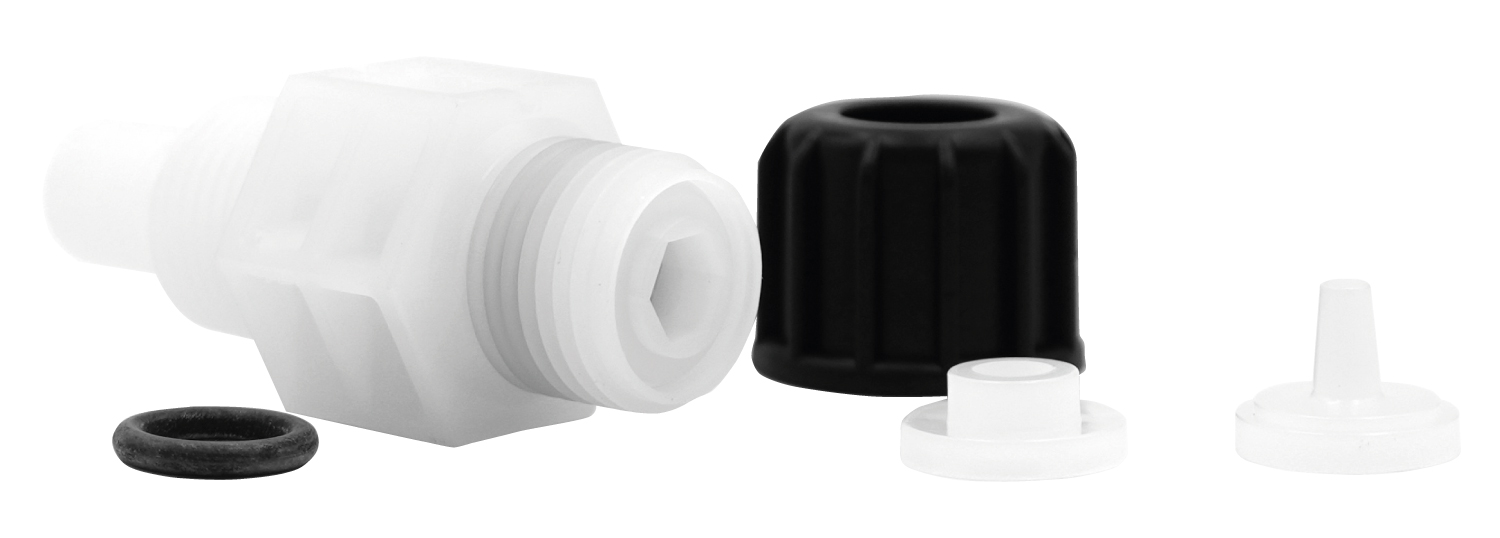

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus. LOTUS MINI injection valve 1/2"- 4x6 (PVDF+FP+CE+C276) Opening pressure: 3 bar Frequently Asked Questions Is the injection valve compatible with my emec dosing system? Yes, it is designed for all emec dosing systems. Can I use it to dose chlorine or pH-Minus? Yes, the valve is suitable for both dosing media. Is installation complicated? No, the valve is simply screwed into the pipeline. Is the material suitable for daily use? Yes, the PVDF material is robust and durable. Can I use the injection valve in a water treatment system? Yes, it is suitable for applications involving chlorine or pH-Minus. Does the valve fit a 1/2" connection? Yes, it is designed for a 1/2" connection. What is the purpose of an injection valve? It ensures the targeted introduction of the dosing medium into the pipeline.

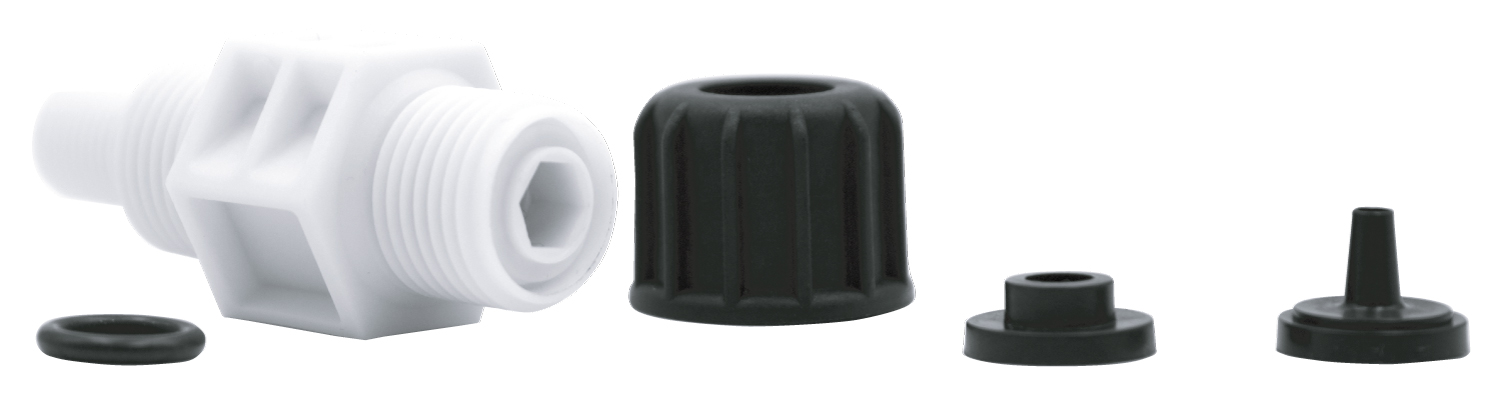

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus. LOTUS MINI injection valve 1/2" - 6x8 PVDF+FP+CE+C276, 0.3 bar Frequently Asked Questions Is the injection valve compatible with my emec dosing system? Yes, it is designed for all emec dosing systems. Can I use it to dose chlorine or pH-Minus? Yes, the injection valve is suitable for both dosing media. Is installation quick and easy? Yes, the valve screws directly into the pipeline. What applications is the injection valve suitable for? It is suitable for any application involving the dosing of chlorine or pH-Minus. Is the material suitable for continuous use? Yes, PVDF ensures high resistance and a long service life. What are the benefits of the 0.3 bar opening pressure? The valve opens at very low pressure. Does the valve fit a 1/2" connection? Yes, it is designed for a 1/2" connection.

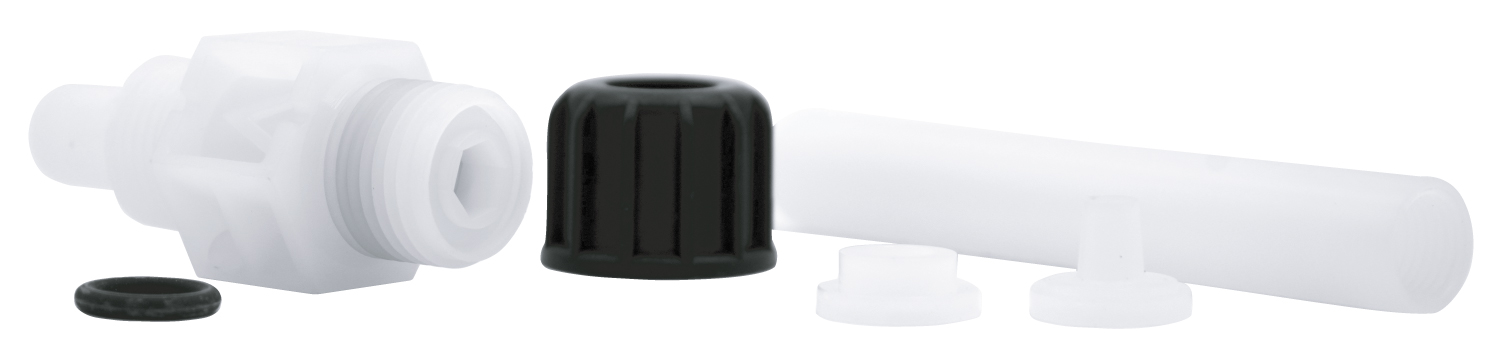

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus. emec LOTUS MINI injection valve 1/2" - 6X8 PVDF+FP+CE + extension 10CM Frequently Asked Questions Is the injection valve compatible with my emec dosing system? Yes, it is designed for all emec dosing systems. Can I use it to dose chlorine and pH-minus? Yes, the injection valve is suitable for both dosing media. Is the valve easy to install? Yes, it screws directly into the pipeline. What is the 10 cm extension used for? It allows for a greater reach within the pipeline. Is the material suitable for continuous use? Yes, the valve is made of robust PVDF. Can I use the injection valve for water treatment? Yes, it is suitable for applications involving chlorine or pH-minus. Does the valve fit a 1/2" connection? Yes, the injection valve is designed for a 1/2" connection.

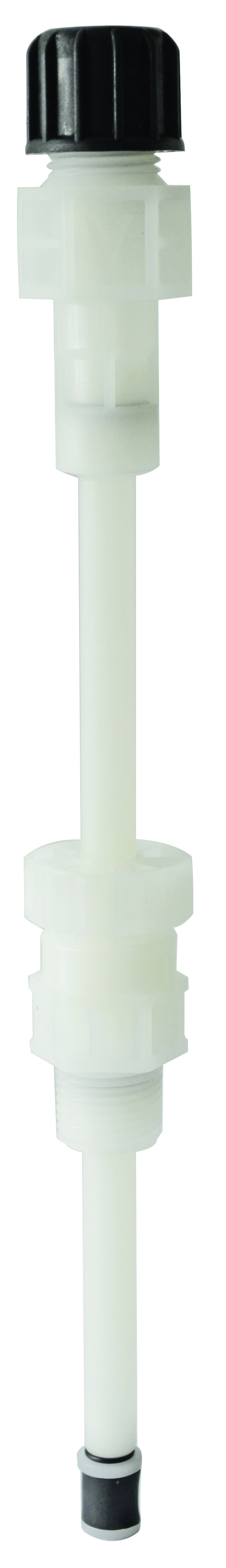

Dosing lance made of PP (polypropylene) Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality Emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Area of application: The EMEC LOTUS MINI LINI-D ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PP (polypropylene), a high-quality plastic O-rings and lip seal: These are made of EPDM (ethylene propylene diene rubber) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is variable: 20 - 160 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 2 bar at 130°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 4x6 mm Dimensions: Width: 12 cmLength: 78 cmWeight: 800g Frequently Asked Questions Can I use the injection lance below the liquid level? Yes, it is specifically designed for that purpose and operates reliably and cleanly in that position. Does the lance really help prevent deposits in the system? Yes, the design significantly reduces crystal formation and the buildup of deposits. Which applications is the injection lance particularly suited for? Primarily for water treatment and other precision dosing applications. Is the dosing accurate enough even for small quantities? Yes, it ensures uniform and highly precise liquid addition. Is the lance compatible with existing systems and tubing? Yes, it offers excellent compatibility thanks to its ½" connection and 4x6 mm tubing. Can the material withstand aggressive chemicals? Yes, PP and EPDM offer high resistance to a wide range of media. Can I adjust the installation depth flexibly? Yes, the immersion depth can be adjusted between 20 and 160 mm.
Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality Emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Area of application:The EMEC LOTUS MINI LINI-D ½" is particularly suitable for applications where precise dosing is required, such as water treatment.Materials: Body: - The dosing lance is made of PP (polypropylene), a high-quality plastic O-rings and lip seal: These are made of EPDM (ethylene propylene diene rubber) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour.Immersion depth: The immersion depth of the lance is variable: 20 - 160 mmOperating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 2 bar at 130°C).Process connection: The dosing lance has a ½" process connectionHose connection: the hose connection is 4x6 mm Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can the injection lance be used below the liquid level? Yes, that is exactly what it was designed for; it operates reliably and cleanly in that position. Does the lance really reduce deposits in the system? Yes, the design helps significantly prevent crystal formation and deposits. What applications is the injection lance intended for? The EMEC LOTUS MINI LINI-D ½" is particularly suitable for applications requiring precise dosing, such as water treatment. Is precise dosing possible even with small quantities? Yes, it ensures uniform and highly accurate liquid addition. Is the lance compatible with existing systems and tubing? Yes, it offers excellent compatibility thanks to its ½" connection and 6x8 mm tubing connection. Can the material withstand aggressive chemicals? Yes, PP and EPDM offer good resistance to many chemicals. Can the installation depth be adjusted flexibly? Yes, the immersion depth can be adjusted between 20 and 160 mm.
Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Area of application: The EMEC LOTUS MINI LINI-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals. O-rings and lip seal: These are made of FKMB (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is variable: 20 - 160 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 2 bar at 110°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 6x8 mm. Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions What can I use the EMEC LOTUS MINI LINI-V 1/2" for? The injection lance is suitable for applications requiring the precise introduction of liquids into a pipeline. Is the injection lance suitable for water treatment? Yes, it was specifically designed for applications where accurate dosing is required. Why should I use an injection lance instead of a standard injection valve? It helps reduce deposits and ensures reliable dosing. Can the injection lance be used at higher pressures? Yes, the injection lance is designed for use in pressurized systems. Is installation complex? No, the injection lance can be easily integrated into existing systems. What material is the injection lance made of? The injection lance is made of PVDF and is suitable for use with many chemicals. For what system size is the LINI-V 1/2" suitable? It is suitable for applications requiring precise and controlled dosing.
Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Area of application: The EMEC LOTUS MINI LINI-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals. O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is variable: 20 - 160 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 2 bar at 110°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 9x12 mm Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Why should I choose a dosing lance instead of a standard injection valve? The dosing lance helps prevent deposits and ensures reliable dosing. Is the dosing lance suitable for my water treatment system? Yes, it was specifically designed for applications where precise dosing is important. Can I use the dosing lance in pressurized lines? Yes, it is designed for use in pressurized systems. Should I expect chemical deposits? The design of the dosing lance significantly reduces the risk of deposits. Is the material resistant to chemicals? Yes, the dosing lance is made of PVDF, a plastic with exceptional chemical resistance. Is the dosing lance easy to retrofit? Yes, it can be easily integrated into existing systems. For which applications is the LOTUS MINI LINI-V 1/2" suitable? It is suitable for any application requiring precise liquid dosing.
Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Area of application: The EMEC LOTUS MINI LINI-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is variable: 20 - 160 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 2 bar at 110°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 4x8 mm Dimensions: Width: 12 cmLength: 78 cmWeight: 800g Frequently Asked Questions Can the dosing lance be used below the liquid level? Yes, that is exactly what it is designed for, ensuring clean and reliable dosing in that position. Does the suction lance really prevent deposits in the system? Yes, its special design helps significantly reduce crystal formation and deposits. Is the dosing point easy to remove? Yes; the connection can be detached without difficulty, especially when using the optional check valve. For which applications is the dosing lance particularly suitable? Primarily for water treatment and other applications requiring precise liquid dosing. How deep can the lance be inserted into the container? The immersion depth is flexible and can be adjusted between 20 and 160 mm. What liquids and conditions can the material withstand? It is highly chemical-resistant and withstands high pressures of up to 16 bar. Is the dosing lance compatible with standard systems and hoses? Yes, it features a ½" connection and is well-suited for standard hoses.
Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality Emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Area of application: The EMEC LOTUS MINI LINI-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is variable: 20 - 160 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 2 bar at 110°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 4x6 Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can the injection lance be used below the liquid level? Yes, that is exactly what it is designed for; it operates reliably and cleanly in that position. Does the lance really help prevent deposits in the system? Yes, its special design significantly reduces crystal formation and deposits. Is the dosing accurate even for small quantities? Yes, it allows for very precise and uniform liquid addition. What applications is the injection lance intended for? For example, water treatment and other applications requiring precise dosing. Is the lance compatible with existing systems and tubing? Yes, it offers excellent compatibility thanks to its ½" connection and 4x6 tubing connection. Can the material withstand aggressive chemicals? Yes, PVDF and Viton ensure high resistance to many chemicals. Can the installation depth be adjusted flexibly? Yes, the immersion depth can be adjusted between 20 and 160 mm.
Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Field of application: The EMEC LOTUS MINI LINIR-D ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PP (polypropylene), a high-quality plastic Ball valve: PVC O-rings and lip seal: These are made of EPDM (ethylene propylene diene rubber) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is max. 55 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 3 bar at 50°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 4x6 Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can I use the dosing lance for my water treatment system? Yes, it is specifically designed for water treatment and similar applications requiring precise dosing. Can the dosing lance withstand higher system pressures? Yes, it is rated for up to 16 bar (though this may be lower depending on the temperature). Does the lance opening clog easily due to deposits? No, the design minimizes deposit buildup and prevents frequent clogging. Can I easily stop or adjust the flow? Yes, the integrated PVC ball valve allows for easy opening, closing, and flow regulation. Does the dosing lance fit my 1/2-inch connection? Yes, it features a standard 1/2" connection and is compatible with many systems. How deep can the lance be inserted into the container? The maximum immersion depth is 55 mm. Is the material resistant to common chemicals? Yes, PP, PVC, and EPDM are well-suited for use with many common chemicals.

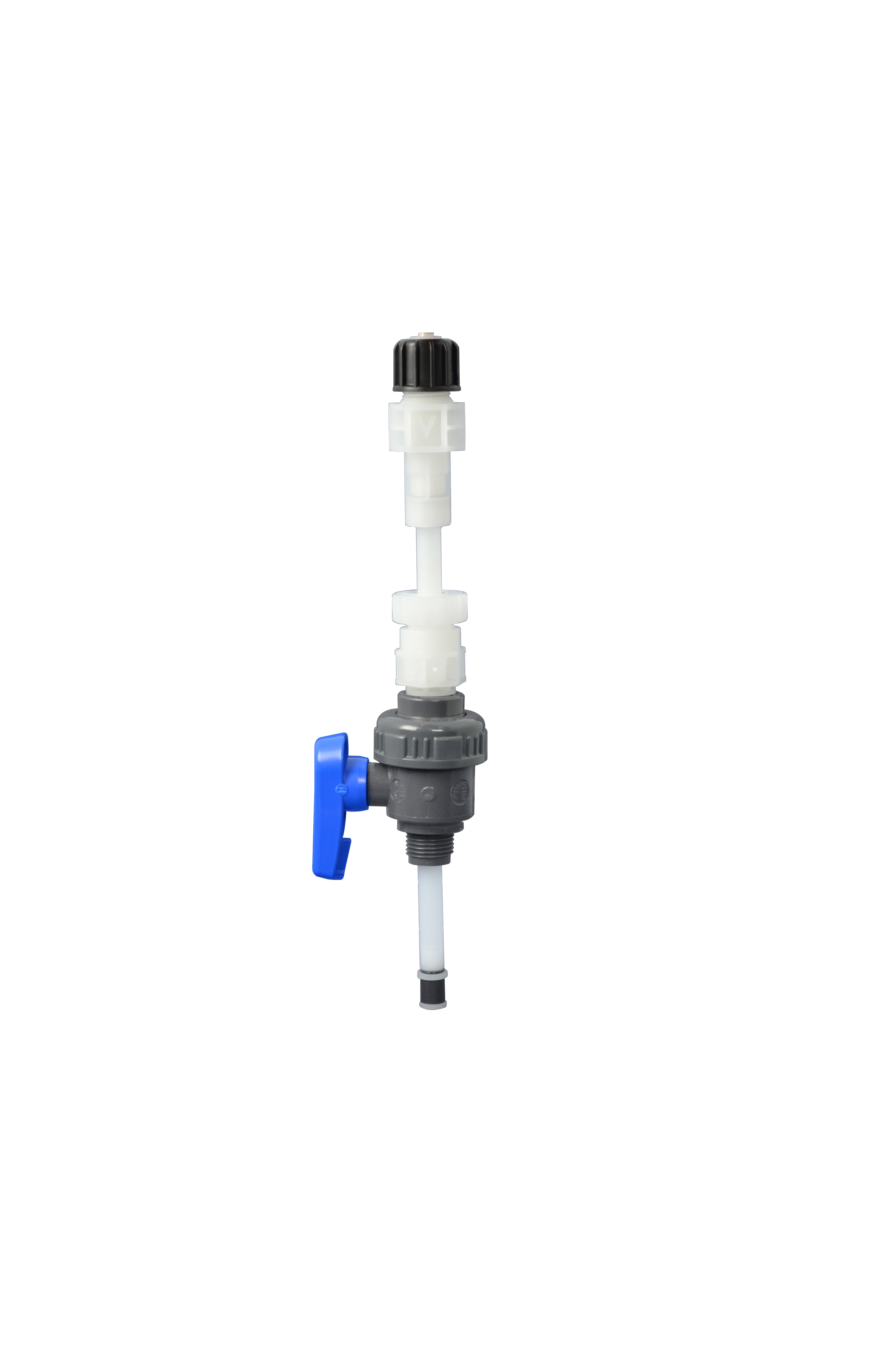

The ½" injection nozzle is specially designed for the precise dosing of sodium hypochlorite in drinking water. With its automatic cleaning system, it ensures reliable and efficient performance. [#dspacer#] Area of application: The EMEC LOTUS MINI LINIR-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals Ball valve: PVC O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is max. 55 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 3 bar at 50°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 4x6 mm Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can I use the dosing lance for drinking water? Yes, it is specifically designed for the safe dosing of sodium hypochlorite into drinking water. What is the PVC ball valve used for? It allows the dosing flow to be easily switched on or off, or regulated. Is the dosing accurate even for small quantities? Yes, the lance ensures uniform and highly precise liquid injection. What applications is the dosing lance suitable for? Primarily for water treatment and other applications requiring precise dosing. Will the lance fit my system? Yes, it offers excellent compatibility thanks to its ½" connection and 4x6 mm tubing. How resistant is the material to chemicals? PVDF, PVC, and Viton offer high resistance to many chemicals. What is the maximum insertion depth for the lance? The maximum immersion depth is 55 mm.
LINIR-V 1/2"- 6x8 (PVDF+FP+CE) dosing lance made of PVDF The ½" injection nozzle is specially designed for the precise dosing of sodium hypochlorite in drinking water. With its automatic cleaning system, it ensures reliable and efficient performance [#dspacer#] Area of application: The EMEC LOTUS MINI LINIR-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals Ball valve: PVC O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is max. 55 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 3 bar at 50°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 6x8 mm Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can I use the dosing lance for drinking water? Yes, it is specifically designed for the safe dosing of sodium hypochlorite in drinking water. What is the automatic cleaning system used for? The automatic cleaning system ensures reliable and efficient performance. It prevents deposits and guarantees consistently reliable dosing. Is the dosing accurate even with small quantities? Yes, the lance enables very uniform and precise liquid dispensing. What applications is the dosing lance suitable for? Primarily for water treatment and other processes requiring precise dosing. Does the lance fit existing systems and tubing? Yes, it offers excellent compatibility thanks to its ½" connection and 6x8 mm tubing. How chemically resistant is the material? PVDF, PVC, and Viton ensure high resistance to a wide range of media. What is the maximum immersion depth of the lance? The immersion depth is up to 55 mm.
The ½" injection nozzle is specially designed for the precise dosing of sodium hypochlorite in drinking water. With its automatic cleaning system, it ensures reliable and efficient performance. Area of application: The EMEC LOTUS MINI LINIR-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals Ball valve: PVC O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour. Immersion depth: The immersion depth of the lance is max. 55 mm Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 3 bar at 50°C). Process connection: The dosing lance has a ½" process connection Hose connection: the hose connection is 8x10 mm Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can I use the dosing lance for drinking water? Yes, it is specifically designed for the safe dosing of sodium hypochlorite in drinking water. What is the purpose of the automatic cleaning system? It prevents deposits and ensures consistently reliable and uniform dosing. Is the dosing accurate enough for small quantities? Yes, the lance enables very precise and stable liquid injection. For which applications is the dosing lance suitable? The EMEC LOTUS MINI LINIR-V ½" is particularly suitable for applications requiring precise dosing, such as water treatment. Is the lance compatible with existing systems and tubing? Yes, it offers excellent compatibility thanks to its ½" connection and 8x10 mm tubing. How resistant is the material to chemicals? PVDF, PVC, and Viton ensure high resistance to a wide range of media and chemicals. What is the maximum insertion depth of the lance? The immersion depth is up to 55 mm.

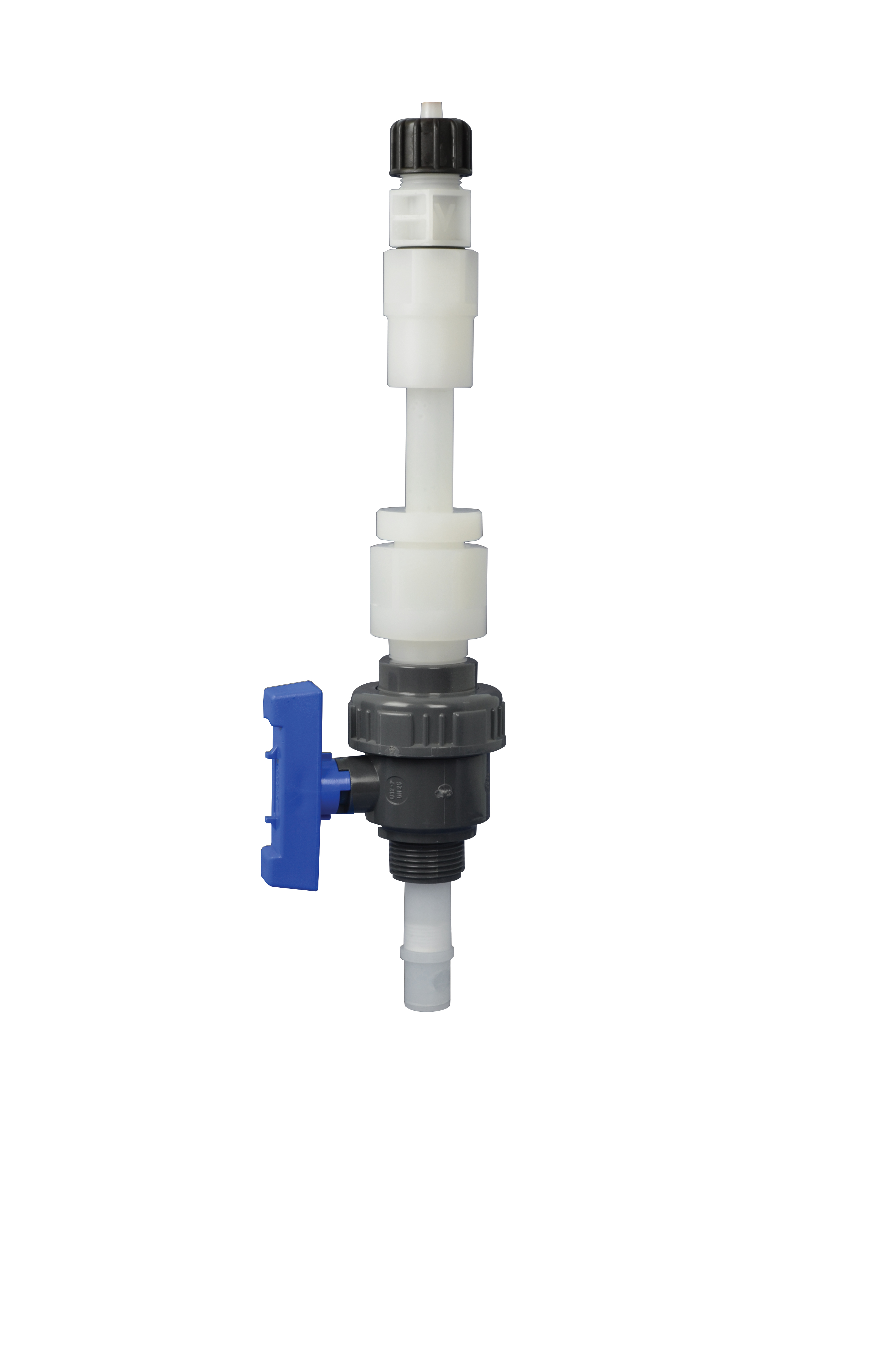

The 3/4’ injection nozzle is specially designed for the precise dosing of sodium hypochlorite in drinking water. With its automatic cleaning system, it ensures reliable and efficient performance. Field of application: The EMEC LOTUS MINI LINIR-V 3/4’ is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals Ball valve: PVC O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 120 litres per hour. Immersion depth: The immersion depth of the lance is max. 55 mm Operating range: The dosing lance can be used at a maximum pressure of 10 bar and a temperature of 25°C (or 3 bar at 50°C). Process connection: The dosing lance has a 3/4’ process connection Hose connection: the hose connection is 13x16 mm Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can I use the dosing lance for drinking water treatment? Yes, it is specifically designed for dosing sodium hypochlorite into drinking water. What is the flow rate capacity of the dosing lance during operation? It can handle up to 120 l/h. Can the dosing lance withstand the pressure in my system? Yes, up to 10 bar at 25°C; the rating is lower at higher temperatures. Do I need to clean the lance opening frequently, or does it clog easily? No, the automatic cleaning system significantly reduces deposits. Does the dosing lance fit my 3/4-inch connection? Yes, it features a standard 3/4" process connection. Is the hose connection compatible with 13x16 mm tubing? Yes, the connection is designed specifically for that size. How deep can I insert the lance into the tank? The maximum immersion depth is 55 mm.
LINIR-V 3/4" dosing lance 8X10 PVDF+FP+CE The 3/4" injection nozzle is specially designed for the precise dosing of sodium hypochlorite in drinking water. With its automatic cleaning system, it ensures reliable and efficient performance. Field of application: The EMEC LOTUS MINI LINIR-V 3/4" is particularly suitable for applications where precise dosing is required, such as water treatment. Materials: Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals Ball valve: PVC O-rings and lip seal: These are made of FKM B (Viton) Maximum flow rate: The dosing lance can achieve a flow rate of up to 120 litres per hour. Immersion depth: The immersion depth of the lance is max. 55 mm Operating range: The dosing lance can be used at a maximum pressure of 10 bar and a temperature of 25°C (or 3 bar at 50°C). Process connection: The dosing lance has a 3/4" process connection Hose connection: the hose connection is 8x10 mm Dimensions: Width: 12 cm Length: 78 cm Weight: 800g Frequently Asked Questions Can I easily install the dosing lance in my system? Yes, its 3/4" connection makes it compatible with many standard systems. What is the dosing lance actually used for? The 3/4" injection nozzle is specifically designed for the precise dosing of sodium hypochlorite into drinking water. It is particularly suitable for applications requiring accurate dosing, such as water treatment. Is the material suitable for chemicals? Yes, the PVDF body is highly resistant to many chemicals. How much liquid can the lance deliver? Up to 120 l/h—ideal for consistent dosing. Does the dosing lance clog easily during regular operation? No, the automatic cleaning system minimizes deposit buildup. Can the lance withstand the pressure in my system? Yes, up to 10 bar at 25°C (lower at higher temperatures). Does the hose connection fit my piping? Yes, it is designed for 8x10 mm hoses.
Service set LOTUS A/MINI 8 / 20 for annual maintenance consisting of: 2 dosing heads VIS pumps acid/sodium chlorite - 4x6 (PVDF+FP+CE)2 PTFE diaphragms type A/I/J, VIS pumps acid/sodium chlorite1 pc. Dosing head VIS pump water dilution - 4x6 (PVDF+FP+CE)1 PTFE diaphragm type PCS/K, VIS pump water dilution3 pcs. non-return valve ½" (PVDF+FP+CE) 0.3 bar5 O-ring FPM for hose connection 1/2"1 pc. MFKT/V - 4x6 Multifunction valve (chlorine dioxide)1 pc. Injection valve 1/2" - 4x6 (PVDF+FP+CE+C276)2 pcs. service set FPM red/blue for suction lances LASP42 m dosing hose 4x6 PVDF10 m suction hose 4x6 PVC frequently asked questions What exactly do I need the emec LOTUS service kit for? The kit allows you to carry out regular maintenance on your LOTUS system and replace key wear parts in good time. Is the service kit compatible with my LOTUS system? The kit is designed for the LOTUS A, LOTUS MINI 8 and LOTUS MINI 20 models. What does the service kit contain? The kit contains several spare parts such as dosing heads, diaphragms, valves, O-rings, as well as dosing and suction hoses. How often should I use the service kit? It is intended for the regular, usually annual, maintenance of your system. Can I carry out the maintenance myself using this kit? Many operators carry out the replacement themselves. Alternatively, a service technician can perform the maintenance. Why is it worth replacing the parts in good time? New wear parts ensure reliable dosing and help to prevent system failures. Do I have to replace all the parts in the set at once? Usually, several parts are replaced at the same time so that the system is fully serviced and ready for use again.
