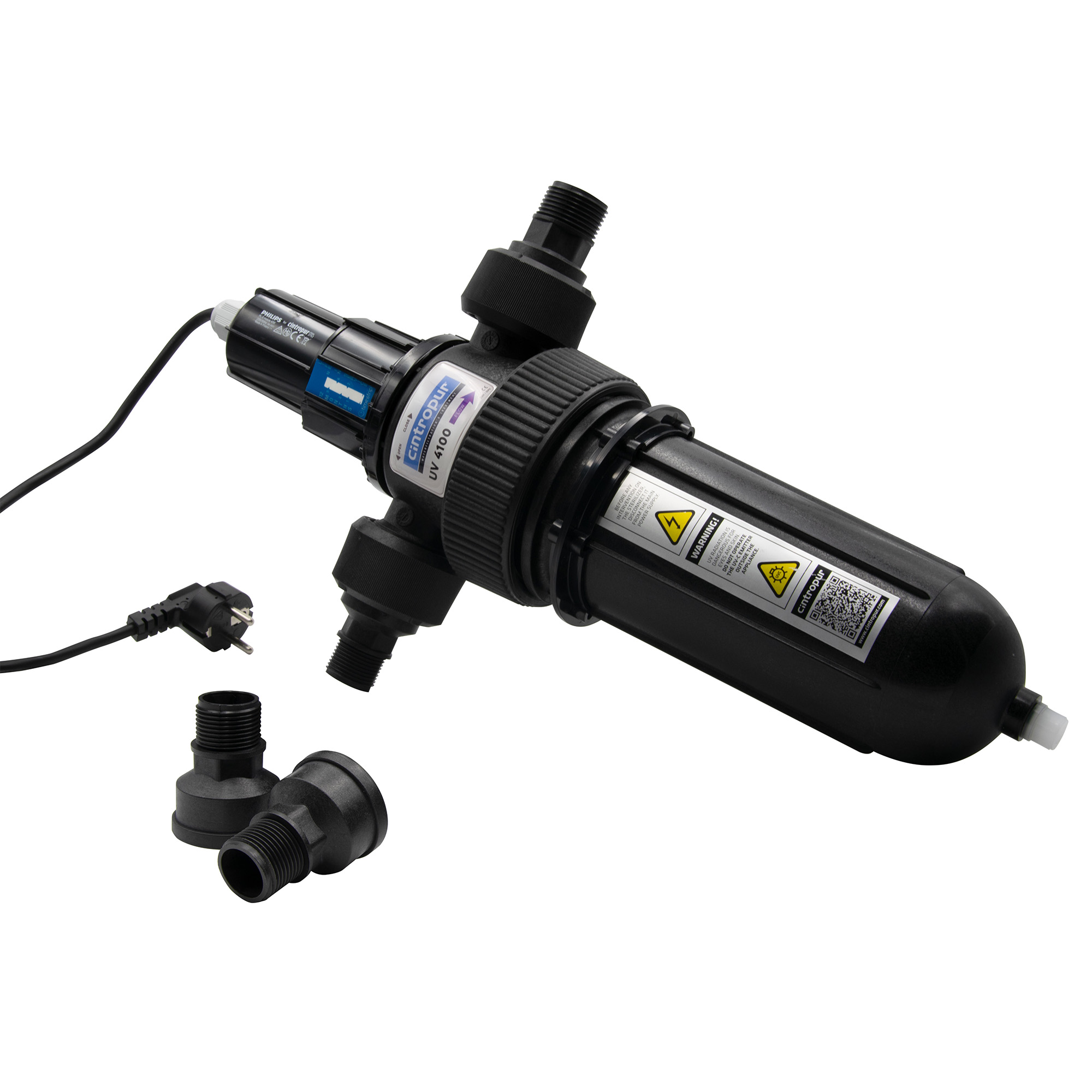

CINTROPUR UV4100 3/4″ + 1″
€420.90*
Please log in to receive your conditions.
Available in 5 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "CINTROPUR UV4100 3/4″ + 1″"
Physical UV Sterilization for Hygienically Clean Water
Effective UV-C disinfection without chemicals for reliable water hygiene
The Cintropur UV4100 uses UV-C radiation for the physical disinfection of water and reliably reduces microorganisms such as bacteria, viruses, and protozoa. Water treatment is carried out entirely without chemical additives, ensuring that no by-products are formed and that taste and odor remain unaffected.
The water flows through a reactor housing in which UV-C radiation inactivates microorganisms without leaving chemical residues. This makes the Cintropur UV4100 a natural and gentle method of water treatment. It is ideally suited for applications where hygienically safe water is required and the use of chemical disinfectants is deliberately avoided.

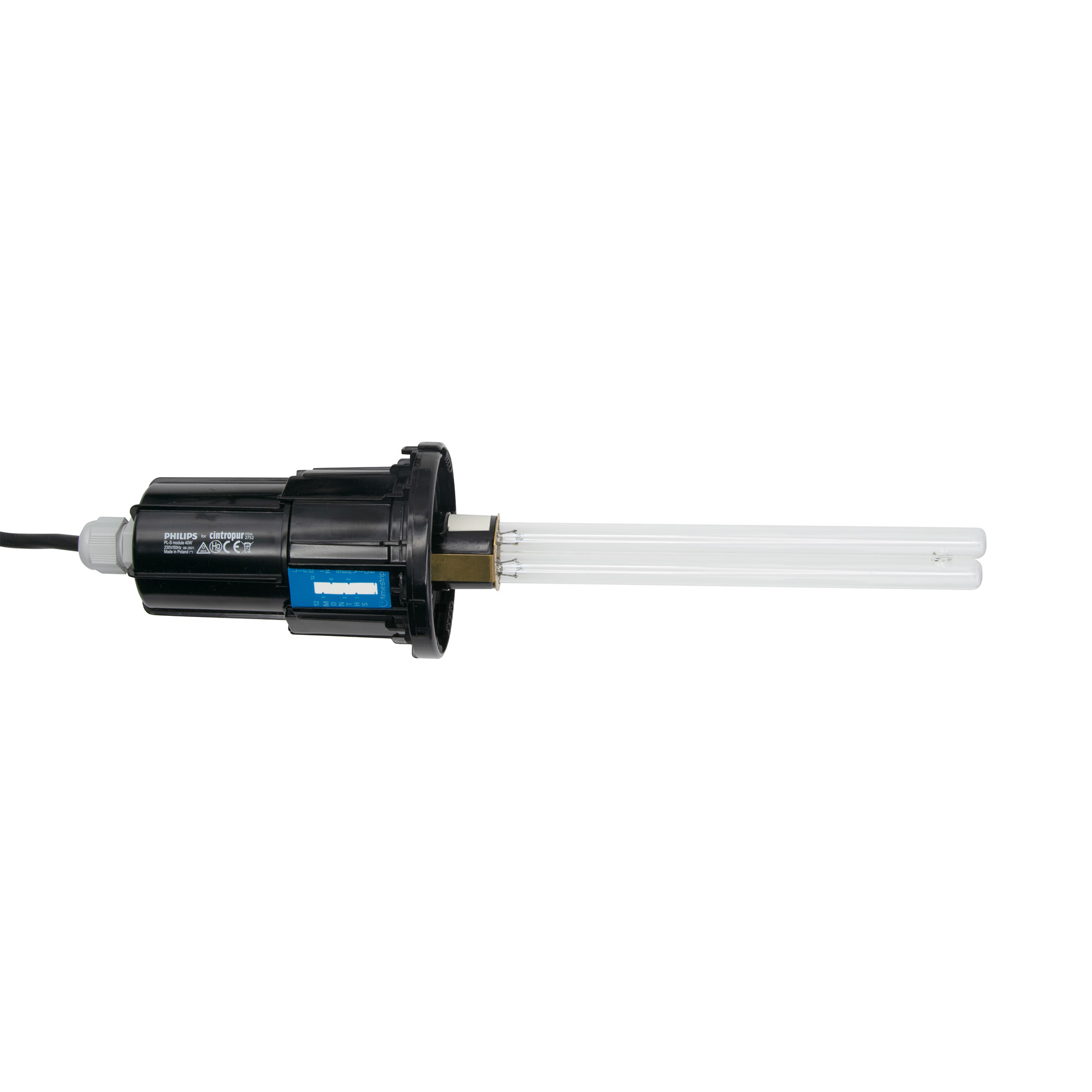

Regular inspection and timely replacement of the UV lamp ensure that disinfection efficiency remains consistently high throughout the entire operating period.
Where can the Cintropur UV4100 be used?
This UV disinfection system is suitable for numerous applications with high requirements for water hygiene, including:
- Pharmaceutical industry
- Food and beverage industry
- Hospitals and medical facilities
- Swimming pools and water systems
- Water management
- Animal husbandry and breeding (e.g. chickens, rabbits, ducks)
What are the benefits of UV sterilization with the Cintropur UV4100?
Compared to chemical disinfection methods, physical UV disinfection offers numerous advantages:
- Easy and fast installation
- Purely physical disinfection using UV-C radiation
- Natural water treatment without chemical additives
- No risk of chemical overdosing
- No unpleasant taste or odor
- Effective reduction of pathogenic microorganisms
- No toxic by-products or residues
- Low maintenance requirements
Dimensions
| Height | 14 cm |
|---|---|
| Length | 52 cm |
| Width | 25,5 cm |
Weight
| Weight | 2,86 kg |
|---|
Other attributes
| Brand | Neomeris |
|---|
|
Technical data |
|||||
|
2100 (25W) |
4100 (40W) |
DUO-UV (25W) |
TRIO-UV (25W) |
TRIO-UV (40W) |
|
|
Diameter of the connection |
3/4" +1" |
||||
|
Max. flow rate (m³/h) at 25 mJ/cm² |
1,7 |
2,1 |
1,7 |
2 |
2,6 |
|
Max. operating pressure (bar) |
16 |
||||
|
Max. operating temperature (°C) |
50 |
||||
|
Weight (kg) |
1,7 |
2,8 |
1,7 |
4,3 |
|
|
Transmission value of the water |
90 |
||||
|
Lamp power (W) |
25 |
40 |
25 |
40 |
|
|
Installation diagram (see product images) |
|||||
|
A (mm) |
270 |
435 |
610 |
||
|
B (mm) |
154,5 |
320 |
487 |
||
|
C (mm) |
178 |
||||
|
D (mm) |
314 |
||||
Versions: /varies with the articles
UV system with 25W lamp
at 250J/m2 max. flow rate 28l/min.
at 400J/m2 max. flow rate 16l/min.
UV system with 40W lamp
at 250J/m2 max. flow rate 35l/min.
at 400J/m2 max. flow rate 21l/min.
UV system with 40W lamp, 25µm filter and activated carbon filter
at 250J/m2 max. flow rate 43l/min.
at 400J/m2 max. flow rate 27l/min.
